[컴퓨터구조] #17. Virtual Memory(1)



Lec 17. Virtual Memory_1 (Large and Fast: Exploiting Memory Hierarchy)



- Virtual Memory
  : technique provided by operating systems

  • Physical address: address in main memory
  • Virtual address: address in virtual space
  • Virtual memory: technique that uses main memory as a “cache” for secondary storage
                               메인메모리를 secondary storage에 대한 cache인 것 처럼 다룸.

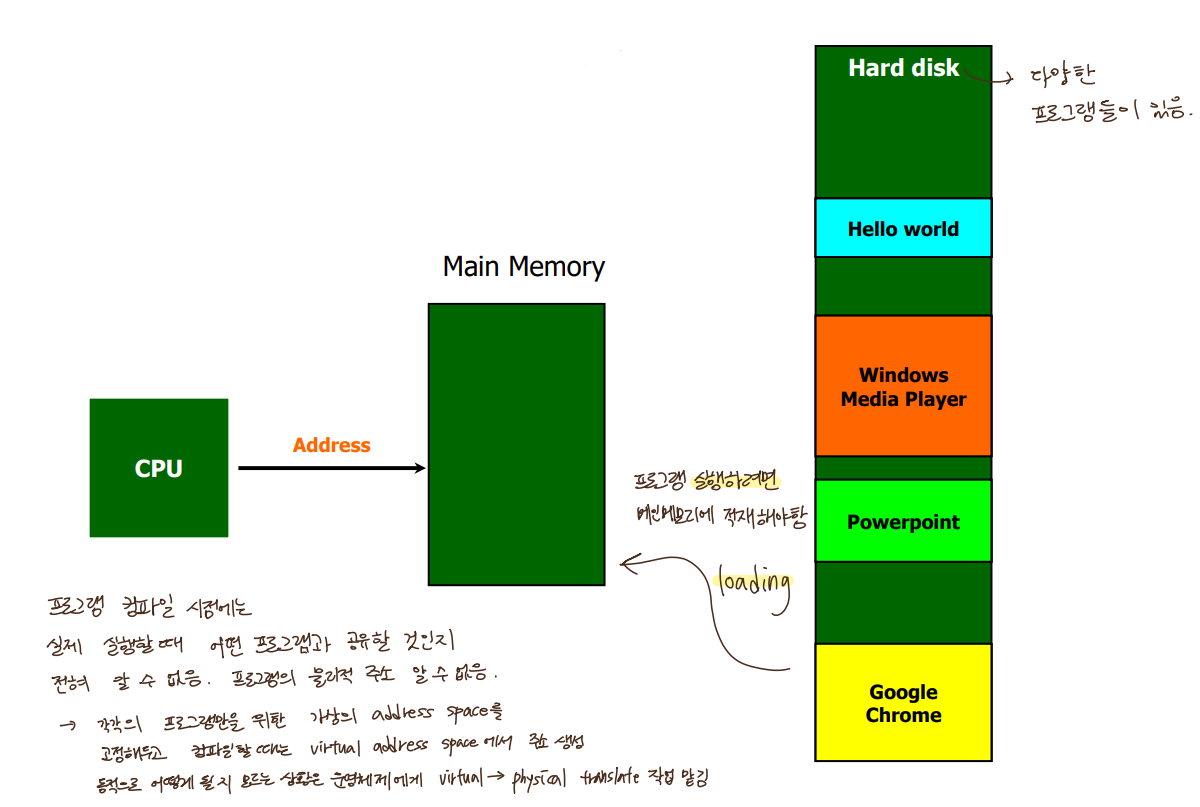

- Motivation of Virtual Memory

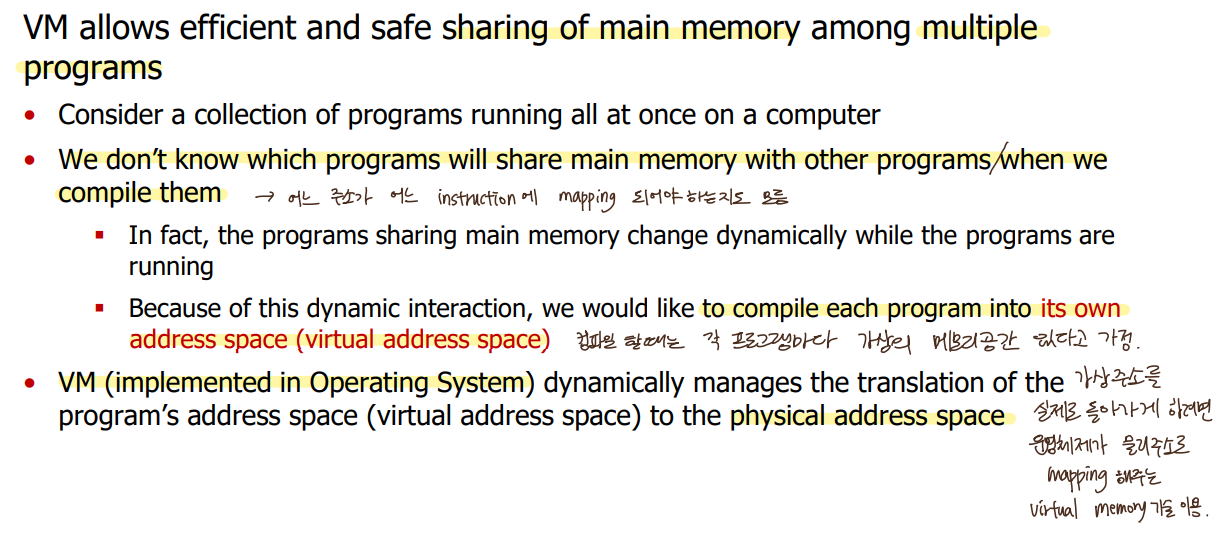

  1) Sharing of memory among multiple programs
      복수개의 프로그램을 하나의 메인메모리만 가지고 사용.

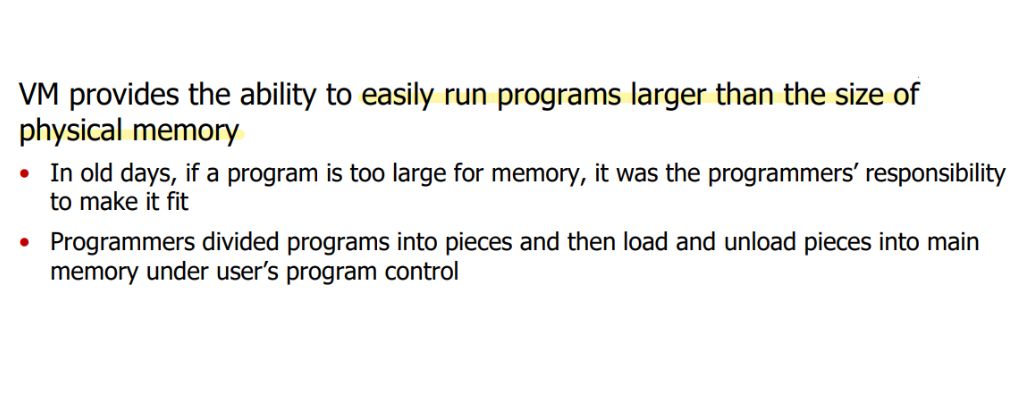

2) A single user program may exceed the size of main memory



---



- Virtual Memory
  ▪ main memory and secondary storage (HDD)
    : Virtual memory automatically manages the 2 levels of memory hierarchy
  ▪ pages (typically 4KB) : Virtual space is split into fixed-sized blocks
  ▪ Load only required pages for execution to physical memory
  ▪ Page fault : a virtual memory miss
  ▪ Page tables : Operating systems create, contain the translation information
                                                                                       (virtual page -> physical page)

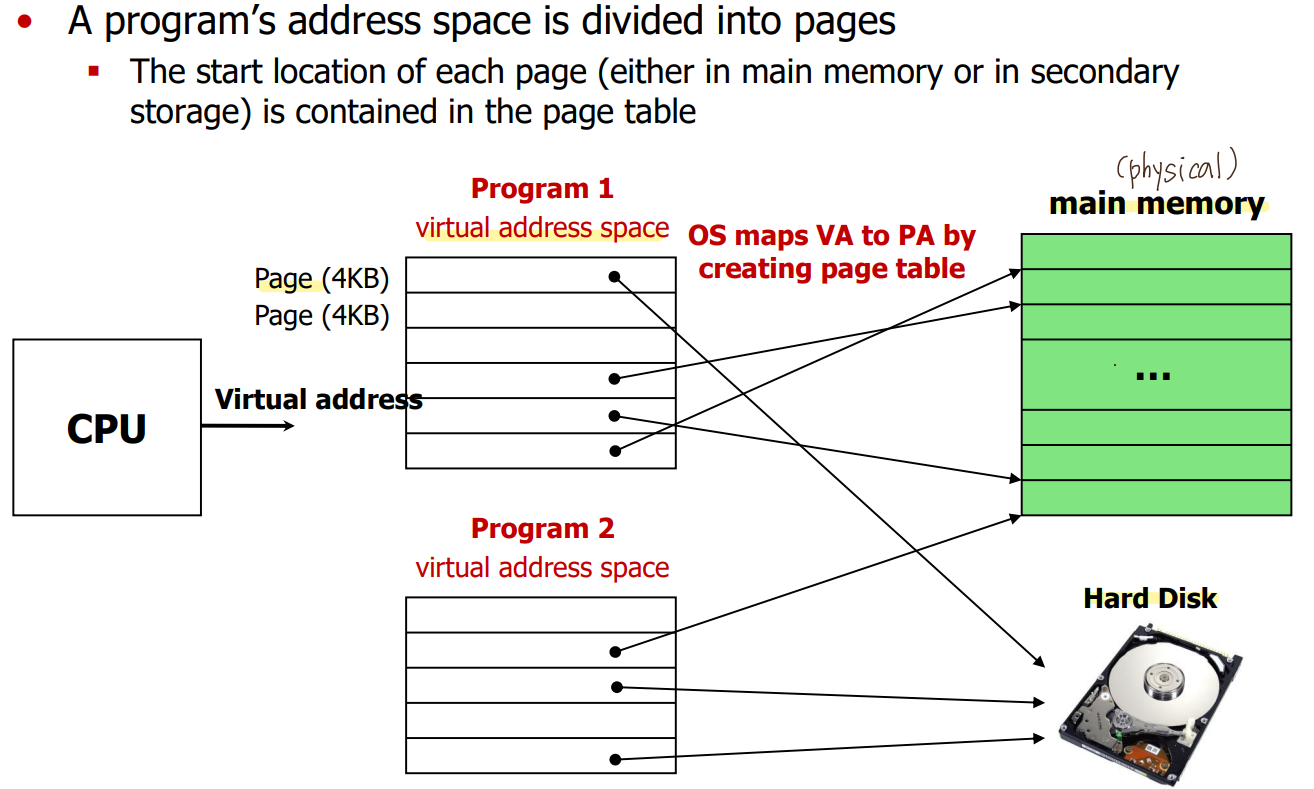

- Two Programs Sharing Physical Memory

  OS maps VA to PA by creating page table



- Address Translation
  : A virtual address is translated to a physical address by a combination of
    hardware(memory management unit) and software

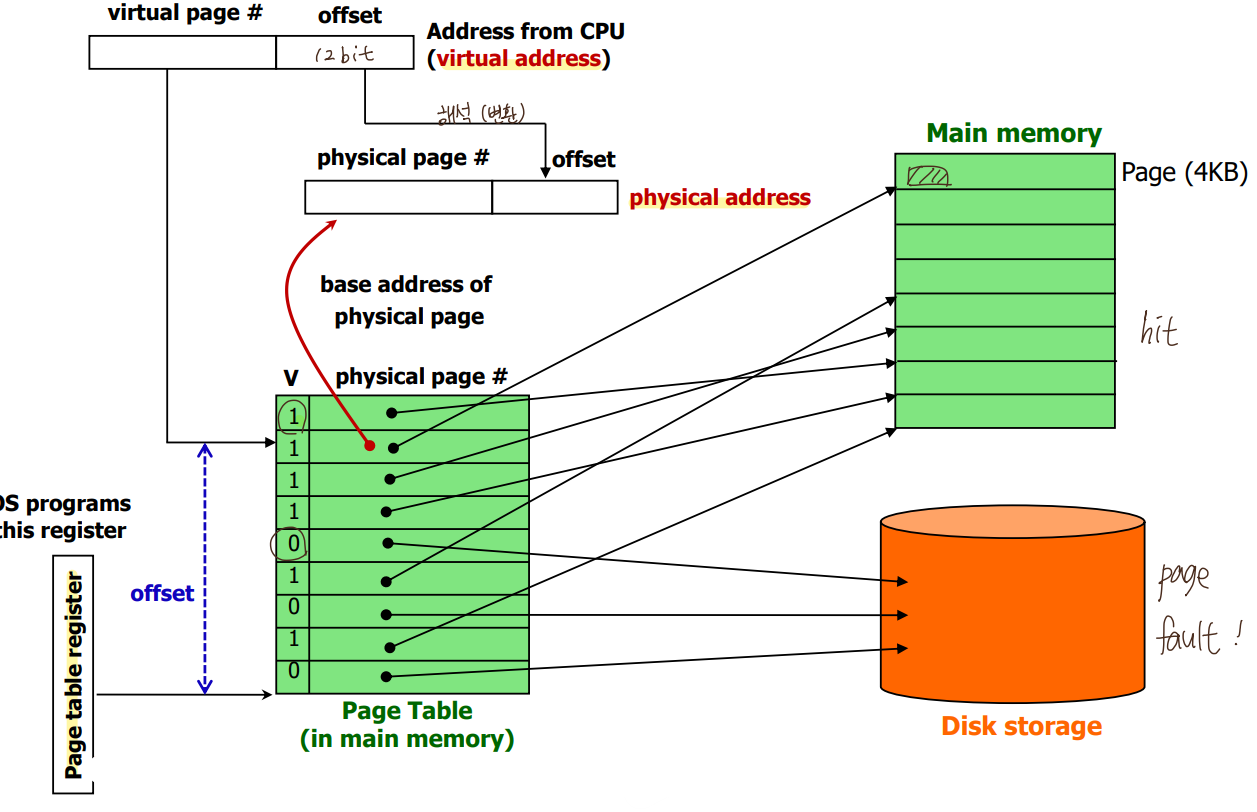

- Page Tables
  : OS creates a page table for each process (that is, each program).
    VA to PA address translation 정보가 담겨있음. 프로그램마다 존재함.

  ▪ Page table is located in main memory
  ▪ Page table is composed of page table entries (PTEs)
  ▪ PTE is indexed by virtual page number
  ▪ Page table register in CPU points to page table in main memory

  1) requested page is present in main memory
     : PTE stores the physical page number plus other status bits
       (referenced 참조한 적 있는지,
        dirty 내가 갖고있는 메인메모리page내용과 secondary page내용이 같은지 다른지, …)

  2) requested page is not present in main memory (page fault)
     : PTE can refer to a location in swap space on disk
  * swap space : space on the disk reserved for the full virtual memory space of a process (program).
                           disk라는 커다란 공간에서 내가 실행하려는 프로그램의 각 페이지들을 담고있는 공간.
                           어떠한 경우에도 특정 virtual page는 swap space에 들어있음이 보장됨.



- Address Translation Mechanism
